From our walkthrough
A recap of the decisions from our conversation. This proposal is built around them.
Flush in-wall Josh Nanos become the primary microphones, with the Josh Edge remotes and the app. The desktop Micros stay on hand for flexibility.
With 6201 sold along with its televisions, 7100 gets fresh displays and soundbars in every room, on a $15,000 panel allowance.
The big west-facing room becomes the primary viewing room: a large-format OLED on a flush articulating mount, surround sound, and blackout drapery for the afternoon sun.
A Frame TV in a wood-cased Leon frame with a matching soundbar, for the passive, social room off the kitchen.
The office gets a proper two-channel setup, McIntosh, a turntable, and Sonus Faber towers, patchable to the whole house through Sonos.
Two small Ubiquiti cameras at the service entry and elevator lobby, recorded to the rack, for a quiet eye on the direct-entry floor.
Run it by voice
The penthouse answers to Josh.ai, the way your home does today. What changes is what you see: flush in-wall Josh Nanos throughout, a cleaner take on the desktop Micros you know, which we keep on hand for flexibility. Speak to the room and it responds, with nothing on the counter.
The investment
The firm proposal for the scope we walked through, by system, with labor included in every line. Figures include 10% tax on equipment.
One optional package, a Ketra fixture upgrade for the kitchen, is shown separately below and is not in this total.
Where the budget goes · click a segment
| Residential Wiring Infrastructure The added low-voltage wiring to bring Josh throughout the home | $616 |
| Audio Systems Eight-zone amplification with two Sonos streams | $10,036 |
| Wired & Wireless Network System Six WiFi 7 access points, gateway, and switching | $17,053 |
| Surveillance System Two discreet cameras with recording | $2,159 |
| Shading & Drape Systems Blackout drapery for The Study, plus integration of the JDL shades | $6,885 |
| Rack, Power & Surge Protection Systems Equipment rack on battery-backed, protected power | $16,931 |
| TV & Mounts Displays, flush mounts, the kitchen lift, and the panel allowance | $35,973 |
| Integrated Control System Josh Core, in-wall Nanos, Edge remotes, programming | $22,299 |
| Surround Sound System The study viewing room: soundbar, receiver, and subwoofer | $10,673 |
| 2 Channel System w/Turntable The office listening room: McIntosh, turntable, Sonus Faber | $15,472 |
| Subtotal, equipment and labor Includes the first-year Signature Membership | $143,766 |
| Tax (10% on equipment) | $11,072 |
| Proposal total | $154,838 |
Twenty-eight Lutron HomeWorks Ketra downlights replacing the kitchen fixtures, for tunable, high-quality light. Shown as an add-on and not in the total above. We can fold it in on request.
Tax and labor. Figures are rounded to whole dollars. Tax is 10% on equipment, and labor is included in each system line.
Inside TV & Mounts. Of this line, $15,000 is the allowance for the panels themselves, which are owner-furnished and sized with you once the sets are chosen. The balance covers the Fireplace Room's hardwood frame, the kitchen lift, the bedroom soundbars, the mounts, cabling, and the Apple TVs, plus install.
Window treatments. JDL supplies and installs the motorized shades and drapery hardware; the drapery fabric is owner-furnished through JDL's workroom. We integrate all of it into Josh.
The approach
This is a home built around sound. Eight zones of music throughout on two streams, independent in every room, the study set for the big screen, and a quiet room for records. Under it all, a Josh.ai brain ties control together, with your JDL lighting and shades brought in, on a Ubiquiti network everything rides on.
r:home designs, programs, installs, and services what we build, with one point of contact and a Signature Membership in your first year.
What we heard
The plan

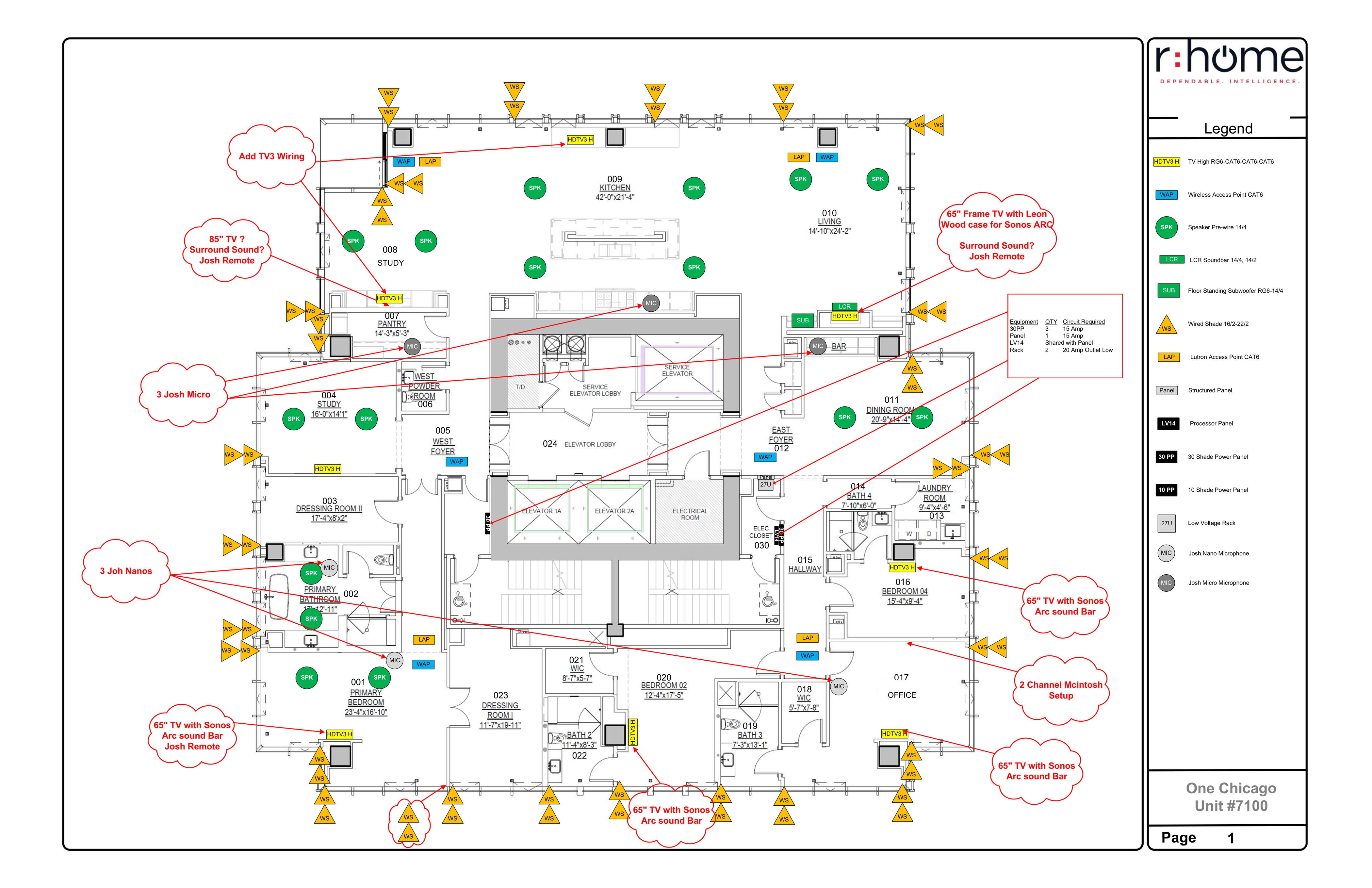

The low-voltage plan for the unit, with every display, speaker, access point, keypad, and shade located to the room. This is the drawing our field team builds from.
Legend and equipment schedule at right. Device counts and exact placements are confirmed at engineering.
How you'll live with it

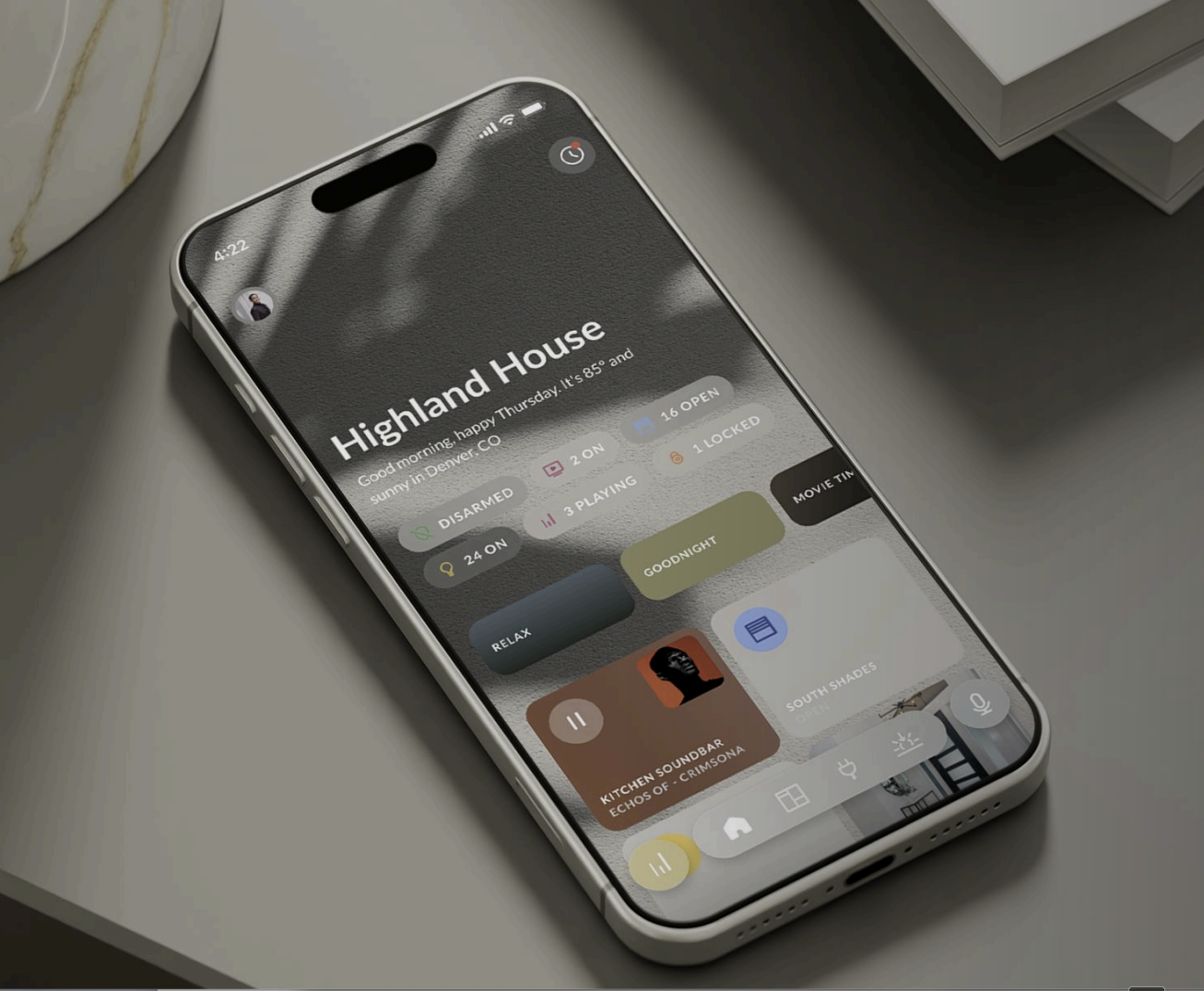

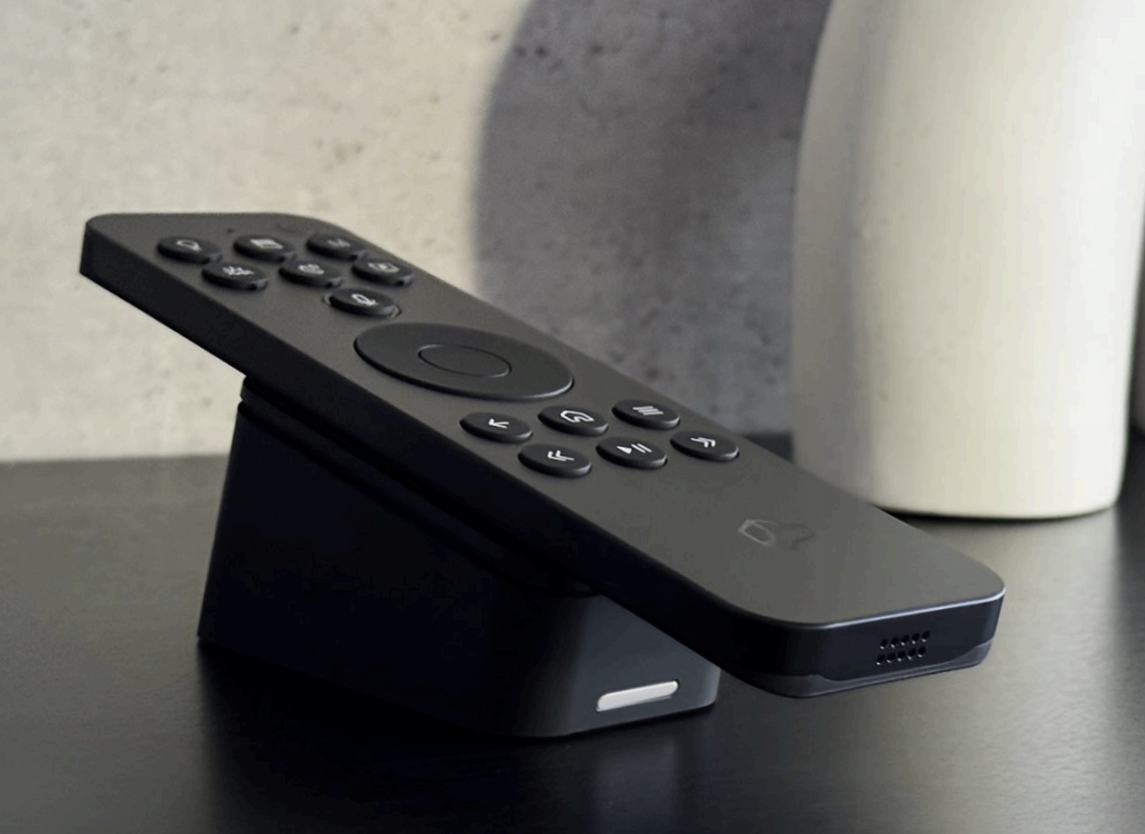

Josh.ai becomes the one way to run the home: speak to it through the flush in-wall Nanos, pick up a Josh Edge remote, or use the app on your phone. One language for the music, the surround room, and the systems behind them.
Josh Edge remote · the Josh app
What we're proposing
The systems in the proposal, and where they land.
Final device counts and placements confirmed at engineering.
Josh.ai ties the home together: voice, a handheld remote, or the app, the same in every room.
A WiFi 7 network and a head-end rack on clean, protected, battery-backed power. Built once, built right.

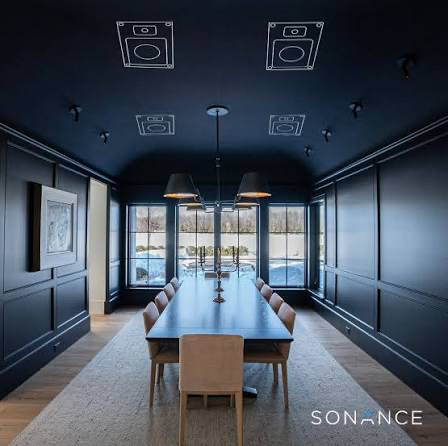

Independent music in every room, streaming or your own library, on one simple control.
Your Lutron lighting and motorized shades, with the engraved keypads, all answer to Josh alongside the audio.
A large-format OLED with a concealed soundbar, receiver, and subwoofer for surround, and blackout drapery for the light.
Displays room to room on flush mounts, the pop-up kitchen lift, and the panel allowance for the sets themselves.
Lighting & shades

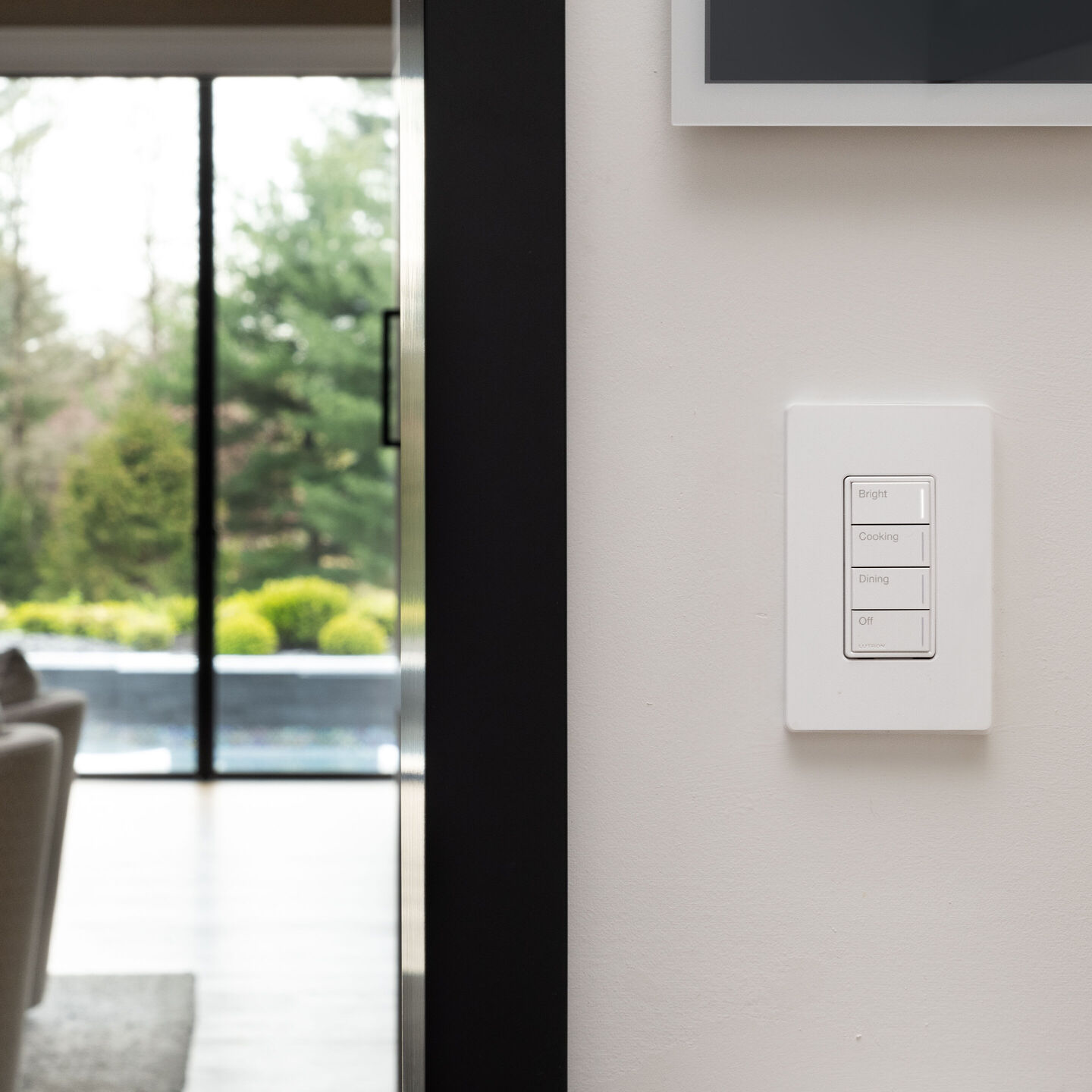

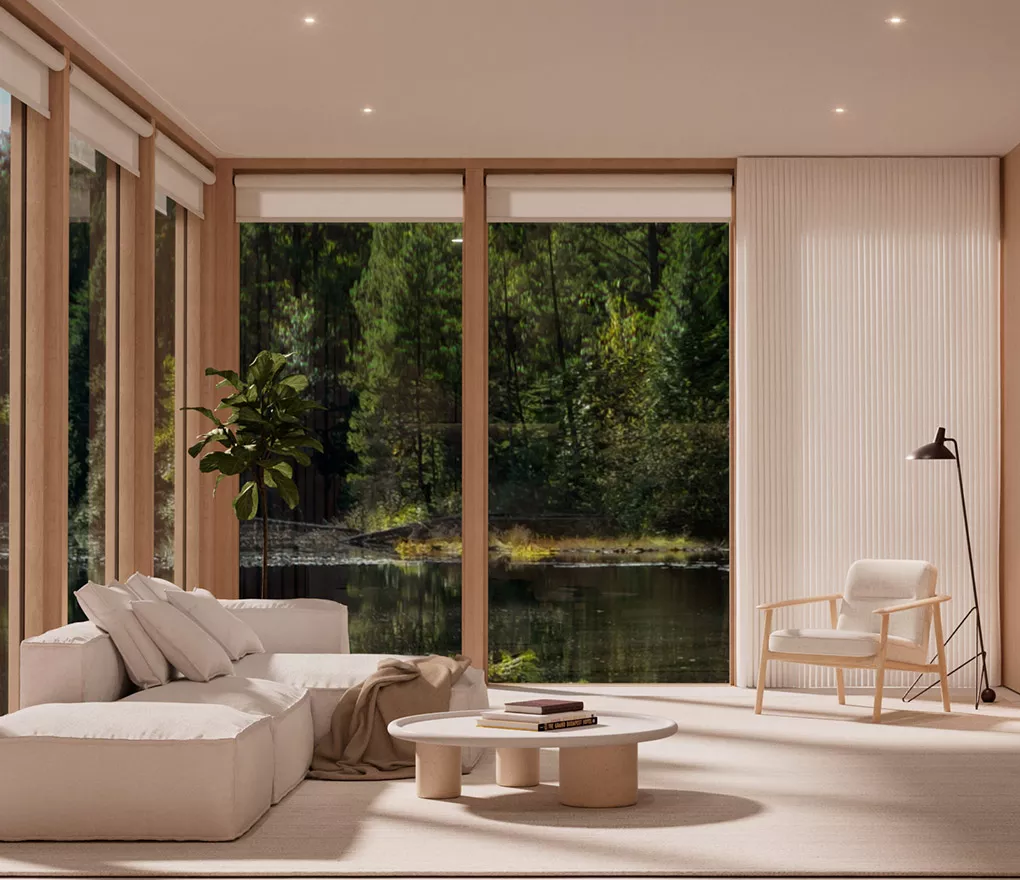

The Lutron lighting, with the engraved keypads, and the motorized shades come with the unit from JDL. We bring both into Josh, so lights, shades, music, and rooms move together as one.
The study
In the study, a large-format OLED sits flush on an articulating mount, so you can pull it out to reach behind and push it back to a clean wall. A concealed soundbar, a receiver, and a subwoofer give it surround, a viewing room, not an IMAX. Blackout drapery keeps the west-facing afternoon sun off the screen for the game or a movie with the family.
Large-format OLED · soundbar, receiver & subwoofer · blackout drapery · final placement confirmed at engineering
The fireplace room

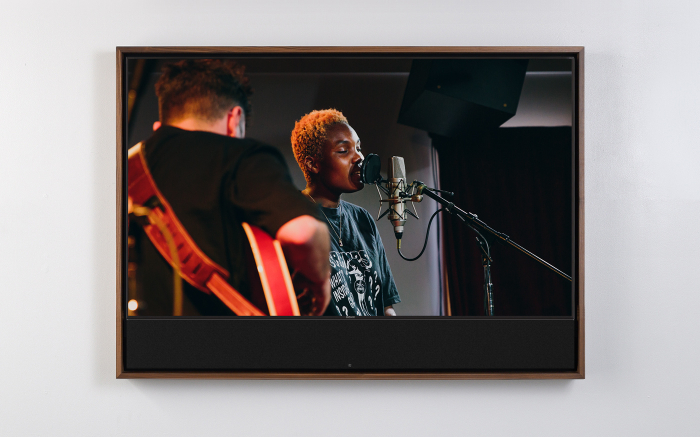

In the fireplace room, a Frame TV sits inside a hardwood Leon frame, with a matching soundbar built into the wood below it. Off, it shows art and hangs like a framed piece. On, it is a clean picture with real sound, for the room off the kitchen where everyone ends up.
Frame TV · hardwood Leon frame · integrated soundbar
In the kitchen
An automated lift raises a display from the kitchen millwork when you want it, and lowers it out of sight when you do not. One more piece of technology that stays invisible until you ask for it.
Where it lives
One connected system, served from a single rack closet at the heart of the unit. Names are yours; final placements are confirmed at engineering.
Everything is served from one equipment rack on protected, battery-backed power: quiet, central, and easy to service.
Worth considering
A few electives on top of the scope above, priced when you want them.
OptionalReplace the kitchen downlights with tunable Lutron Ketra fixtures, for high-quality light that shifts warm to cool through the day.
We can addBlackout drapery is already in the study. Add drapery or blackout in other rooms for a softer, layered look, brought into Josh alongside the shades.

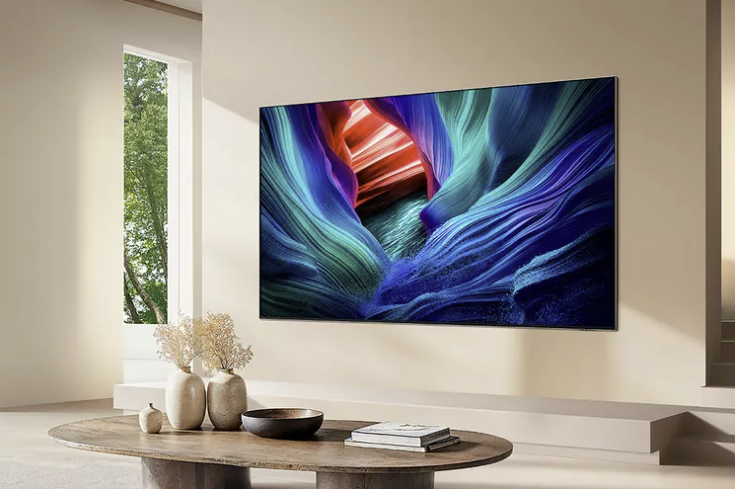

We can addLarger-format, high-quality displays throughout the space, with Micro-LED and seamless video walls where you want the picture to stand out.
Scope
Next
This is the proposal we walked through, with the numbers firmed up. The next step is placement: our engineer and I write up the device locations room by room, you review them, and we lock any open choices before we schedule the work.
The next step
Every device, mapped to its spot
Our engineer and I map each display, speaker, and access point to its exact location, and you sign off before anything is installed.
Then
With window-treatment decisions settled by month-end, we schedule the work around your October close. No rush, and no surprises.
Questions on anything here? We will walk you through it.
